Euroconus Connectors Fitting 16×2.0 For Multi/Pex

0 comments
Hot SKU: UHCON-SZL-1039-1620 In Stock: 220 Categories: Connectors

Introductory Offer

1.13 Excl.VAT

Excl.VAT

Choose Quantity:
Buy Now Add to cart

Description

Description

Our universal range of eurocone pipe connectors are suitable for connecting both EVOH Pert and Pert Al Pert pipe to any 3/4″ manifold port.

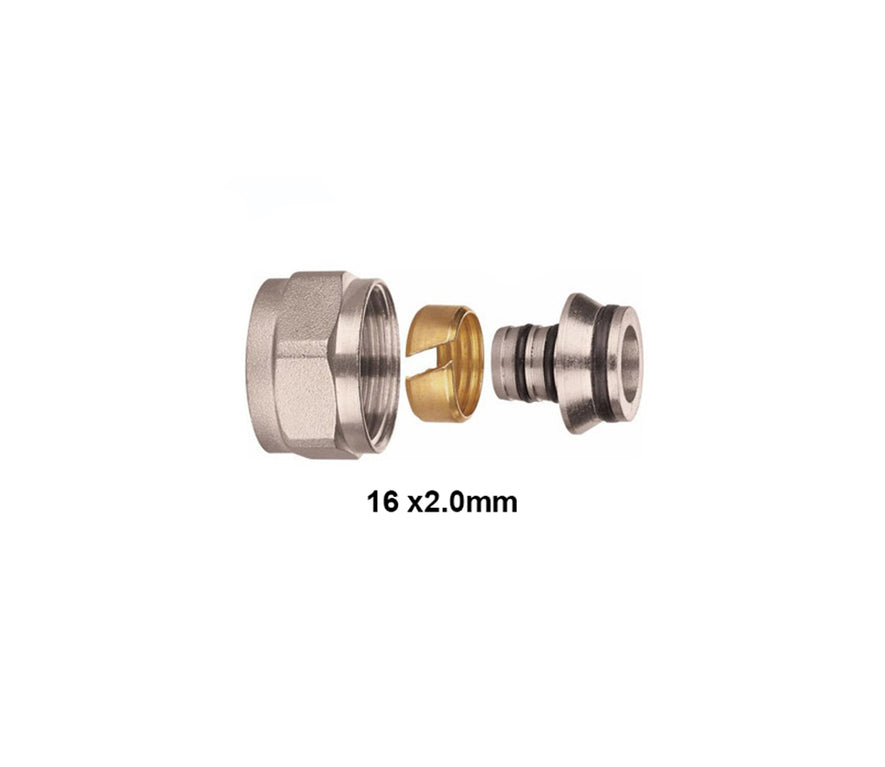

Each fitting includes an olive, insert and connection nut as shown in the picture.

Available for 12, 15, 16, 17, 18 & 20mm pipe



PLEASE NOTE:

  • 16x2mm will fit our range of 16mm EVOH & PERT-AL-PERT pipe

  • 12×1.6mm will fit our range of 12mm PERT-AL-PERT pipe



Installation

1. Slide the compression nut onto the pipe
2. slide the olive onto the pipe
3. Push the insert into the pipe ensuring it passes the rubber seal
4. Hold the pipe firmly against the manifold port and slide the compression nut onto the manifold thread
5. Tighten the compression nut to ensure a permanent and watertight seal



Specifications

  • Join various sized PERT & AL-PERT pipe to 3/4″ manifold ports

  • Compression fitting can be assembled with just a spanner

  • Made from high grade nickel plated brass

  • Olive and double O ring rubber seal for a safe & watertight finish
